MOQ Implementation supporting both client and server modes. More...

#include <transport.h>

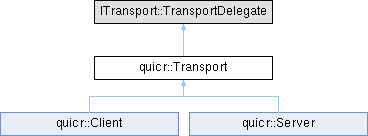

Inheritance diagram for quicr::Transport:

Classes
struct	ConnectionRemoteInfo
	Connection remote information. More...

Public Types
enum class	Status : uint8_t { kReady = 0 , kNotReady , kInternalError , kInvalidParams , kConnecting , kDisconnecting , kNotConnected , kFailedToConnect , kPendingServerSetup }
	Status of the transport. More...
enum class	ControlMessageStatus : uint8_t { kMessageIncomplete , kMessageComplete , kStreamBufferCannotBeZero , kStreamBufferMissingType , kUnsupportedMessageType }
	Control message status codes. More...
enum class	StreamDataMessageStatus : uint8_t
enum class	ConnectionStatus : uint8_t { kNotConnected = 0 , kConnecting , kConnected , kIdleTimeout , kClosedByRemote }
	Connection status codes. More...

Public Member Functions
	Transport ()=delete
	Transport (const ClientConfig &cfg, std::shared_ptr< TickService > tick_service)
	Client mode Constructor to create the MOQ instance.
	Transport (const ServerConfig &cfg, std::shared_ptr< TickService > tick_service)
	Server mode Constructor to create the MOQ instance.
	~Transport ()
const std::shared_ptr< TickService > &	GetTickService () const noexcept
void	SubscribeTrack (ConnectionHandle connection_handle, std::shared_ptr< SubscribeTrackHandler > track_handler)
	Subscribe to a track.
void	UnsubscribeTrack (ConnectionHandle connection_handle, const std::shared_ptr< SubscribeTrackHandler > &track_handler)
	Unsubscribe track.
void	UpdateTrackSubscription (ConnectionHandle connection_handle, std::shared_ptr< SubscribeTrackHandler > track_handler, bool new_group_request=false)
	Update Subscription to a track.
void	PublishTrack (ConnectionHandle connection_handle, std::shared_ptr< PublishTrackHandler > track_handler)
	Publish to a track.
void	PublishTrackSub (ConnectionHandle connection_handle, std::shared_ptr< PublishTrackHandler > track_handler)
	Publish to a track and force subscribe.
void	UnpublishTrack (ConnectionHandle connection_handle, const std::shared_ptr< PublishTrackHandler > &track_handler)
	Unpublish track.
virtual bool	FetchReceived (ConnectionHandle connection_handle, uint64_t request_id, const FullTrackName &track_full_name, const quicr::messages::FetchAttributes &attributes)
	Event to run on receiving Fetch request.
void	FetchTrack (ConnectionHandle connection_handle, std::shared_ptr< FetchTrackHandler > track_handler)
	Fetch track.
void	CancelFetchTrack (ConnectionHandle connection_handle, std::shared_ptr< FetchTrackHandler > track_handler)
	Cancel Fetch track.
uint64_t	RequestTrackStatus (ConnectionHandle connection_handle, const FullTrackName &track_full_name, const messages::SubscribeAttributes &subscribe_attributes)
	Request track status.
virtual void	ResolveTrackStatus (ConnectionHandle connection_handle, uint64_t request_id, uint64_t track_alias, const SubscribeResponse &subscribe_response)
	Accept or reject track status that was received.
Status	GetStatus () const noexcept
	Get the status of the Client.
Base Calbacks
Both client and server implement the same transport base callbacks
virtual void	StatusChanged (Status status)
	Callback notification for status/state change.
virtual void	TrackStatusReceived (ConnectionHandle connection_handle, uint64_t request_id, const FullTrackName &track_full_name, const messages::SubscribeAttributes &subscribe_attributes)
	Callback notification for track status message received.
virtual void	TrackStatusResponseReceived (ConnectionHandle connection_handle, uint64_t request_id, const SubscribeResponse &response)
	Callback notification for track status OK received.

Protected Member Functions
std::shared_ptr< Transport >	GetSharedPtr ()
ConnectionContext &	GetConnectionContext (ConnectionHandle conn)

Detailed Description

MOQ Implementation supporting both client and server modes.

MoQ implementation is the handler for either a client or server. It can run in only one mode, client or server.

Member Enumeration Documentation

◆ ConnectionStatus

enum class quicr::Transport::ConnectionStatus : uint8_t

strong

Connection status codes.

Enumerator
kNotConnected
kConnecting
kConnected
kIdleTimeout
kClosedByRemote

◆ ControlMessageStatus

enum class quicr::Transport::ControlMessageStatus : uint8_t

strong

Control message status codes.

Enumerator
kMessageIncomplete	control message is incomplete and more data is needed
kMessageComplete	control message is complete and stream buffer get any has complete message
kStreamBufferCannotBeZero	stream buffer cannot be zero when parsing message type
kStreamBufferMissingType	connection context is missing message type
kUnsupportedMessageType	Unsupported MOQT message type.

◆ Status

enum class quicr::Transport::Status : uint8_t

strong

Status of the transport.

Enumerator
kReady
kNotReady
kInternalError
kInvalidParams
kConnecting
kDisconnecting
kNotConnected
kFailedToConnect
kPendingServerSetup

◆ StreamDataMessageStatus

enum class quicr::Transport::StreamDataMessageStatus : uint8_t

strong

Constructor & Destructor Documentation

◆ Transport() [1/3]

quicr::Transport::Transport ( )

delete

◆ Transport() [2/3]

quicr::Transport::Transport	(	const ClientConfig &	cfg,
		std::shared_ptr< TickService >	tick_service )

Client mode Constructor to create the MOQ instance.

Parameters

cfg	MoQ Instance Client Configuration
tick_service	Shared pointer to the tick service to use

◆ Transport() [3/3]

quicr::Transport::Transport	(	const ServerConfig &	cfg,
		std::shared_ptr< TickService >	tick_service )

Server mode Constructor to create the MOQ instance.

Parameters

cfg	MoQ Server Configuration
tick_service	Shared pointer to the tick service to use

◆ ~Transport()

quicr::Transport::~Transport ( )

Member Function Documentation

◆ CancelFetchTrack()

void quicr::Transport::CancelFetchTrack	(	ConnectionHandle	connection_handle,
		std::shared_ptr< FetchTrackHandler >	track_handler )

Cancel Fetch track.

Parameters

connection_handle	Connection ID to send fetch cancel.
track_handler	Fetch Track handler to cancel.

◆ FetchReceived()

virtual bool quicr::Transport::FetchReceived	(	ConnectionHandle	connection_handle,
		uint64_t	request_id,
		const FullTrackName &	track_full_name,
		const quicr::messages::FetchAttributes &	attributes )

virtual

Event to run on receiving Fetch request.

Parameters

connection_handle	Source connection ID.
request_id	Request ID received.
track_full_name	Track full name
attributes	Fetch attributes received.

Returns: True to indicate fetch will send data, False if no data is within the requested range

Reimplemented in quicr::Client, and quicr::Server.

◆ FetchTrack()

void quicr::Transport::FetchTrack	(	ConnectionHandle	connection_handle,
		std::shared_ptr< FetchTrackHandler >	track_handler )

Fetch track.

Parameters

connection_handle	Connection ID to send fetch
track_handler	Track handler used for fetching

Examples: server.cpp.

◆ GetConnectionContext()

ConnectionContext & quicr::Transport::GetConnectionContext ( ConnectionHandle conn )

protected

◆ GetSharedPtr()

std::shared_ptr< Transport > quicr::Transport::GetSharedPtr ( )

protected

◆ GetStatus()

Status quicr::Transport::GetStatus ( ) const

inlinenoexcept

Get the status of the Client.

Returns: Status of the Client

◆ GetTickService()

const std::shared_ptr< TickService > & quicr::Transport::GetTickService ( ) const

inlinenoexcept

◆ PublishTrack()

void quicr::Transport::PublishTrack	(	ConnectionHandle	connection_handle,
		std::shared_ptr< PublishTrackHandler >	track_handler )

Publish to a track.

Parameters

connection_handle	Connection ID from transport for the QUIC connection context
track_handler	Track handler to use for track related functions and callbacks

◆ PublishTrackSub()

void quicr::Transport::PublishTrackSub	(	ConnectionHandle	connection_handle,
		std::shared_ptr< PublishTrackHandler >	track_handler )

Publish to a track and force subscribe.

Parameters

connection_handle	Connection ID from transport for the QUIC connection context
track_handler	Track handler to use for track related functions and callbacks

◆ RequestTrackStatus()

uint64_t quicr::Transport::RequestTrackStatus	(	ConnectionHandle	connection_handle,
		const FullTrackName &	track_full_name,
		const messages::SubscribeAttributes &	subscribe_attributes )

Request track status.

Parameters

connection_handle	Source connection ID.
track_full_name	Track full name
subscribe_attributes	Subscribe attributes for track status

Returns
Request ID that is used for the track status request

◆ ResolveTrackStatus()

virtual void quicr::Transport::ResolveTrackStatus	(	ConnectionHandle	connection_handle,
		uint64_t	request_id,
		uint64_t	track_alias,
		const SubscribeResponse &	subscribe_response )

virtual

Accept or reject track status that was received.

Accept or reject track status received via TrackStatusReceived(). The MoQ Transport will send the protocol message based on the SubscribeResponse. Per MOQT draft-14, track status request, ok, and error are the same as subscribe

Parameters

connection_handle	source connection ID
request_id	Request ID that was provided by TrackStatusReceived
track_alias	Track alias for the track
subscribe_response	Response to the track status request, either Ok or Error. Largest loation should be set if kOk and there is content

Examples: server.cpp.

◆ StatusChanged()

virtual void quicr::Transport::StatusChanged ( Status status )

inlinevirtual

Callback notification for status/state change.

Callback notification indicates state change of connection, such as disconnected

Parameters

status Changed Status value

Examples: client.cpp.

◆ SubscribeTrack()

void quicr::Transport::SubscribeTrack	(	ConnectionHandle	connection_handle,
		std::shared_ptr< SubscribeTrackHandler >	track_handler )

Subscribe to a track.

Parameters

connection_handle	Connection ID to send subscribe
track_handler	Track handler to use for track related functions and callbacks

Examples: server.cpp.

◆ TrackStatusReceived()

virtual void quicr::Transport::TrackStatusReceived	(	ConnectionHandle	connection_handle,
		uint64_t	request_id,
		const FullTrackName &	track_full_name,
		const messages::SubscribeAttributes &	subscribe_attributes )

virtual

Callback notification for track status message received.

Note: The caller MUST respond to this via ResolveTrackStatus(). If the caller does not override this method, the default will call ResolveTrackStatus() with the status of OK

Parameters

connection_handle	Source connection ID
request_id	Request ID received
track_full_name	Track full name
subscribe_attributes	Subscribe attributes received

Examples: server.cpp.

◆ TrackStatusResponseReceived()

virtual void quicr::Transport::TrackStatusResponseReceived	(	ConnectionHandle	connection_handle,
		uint64_t	request_id,
		const SubscribeResponse &	response )

virtual

Callback notification for track status OK received.

Note: The caller is able to state track the OK based on the request Id returned from RequestTrackStatus method call

Parameters

connection_handle	Source connection ID
request_id	Request ID received
response	Track status (track_status = Subscribe) response

Examples: client.cpp.

◆ UnpublishTrack()

void quicr::Transport::UnpublishTrack	(	ConnectionHandle	connection_handle,
		const std::shared_ptr< PublishTrackHandler > &	track_handler )

Unpublish track.

Parameters

connection_handle	Connection ID from transport for the QUIC connection context
track_handler	Track handler used when published track

◆ UnsubscribeTrack()

void quicr::Transport::UnsubscribeTrack	(	ConnectionHandle	connection_handle,
		const std::shared_ptr< SubscribeTrackHandler > &	track_handler )

Unsubscribe track.

Parameters

connection_handle	Connection ID to send subscribe
track_handler	Track handler to use for track related functions and callbacks

Examples: server.cpp.

◆ UpdateTrackSubscription()

void quicr::Transport::UpdateTrackSubscription	(	ConnectionHandle	connection_handle,
		std::shared_ptr< SubscribeTrackHandler >	track_handler,
		bool	new_group_request = false )

Update Subscription to a track.

Parameters

connection_handle	Connection ID to send subscribe
track_handler	Track handler to use for track related functions and callbacks
new_group_request	True to add new group request parameter

Examples: server.cpp.

The documentation for this class was generated from the following file:

include/quicr/detail/transport.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ ConnectionStatus

◆ ControlMessageStatus

◆ Status

◆ StreamDataMessageStatus

Constructor & Destructor Documentation

◆ Transport() [1/3]

◆ Transport() [2/3]

◆ Transport() [3/3]

◆ ~Transport()

Member Function Documentation

◆ CancelFetchTrack()

◆ FetchReceived()

◆ FetchTrack()

◆ GetConnectionContext()

◆ GetSharedPtr()

◆ GetStatus()

◆ GetTickService()

◆ PublishTrack()

◆ PublishTrackSub()

◆ RequestTrackStatus()

◆ ResolveTrackStatus()

◆ StatusChanged()

◆ SubscribeTrack()

◆ TrackStatusReceived()

◆ TrackStatusResponseReceived()

◆ UnpublishTrack()

◆ UnsubscribeTrack()

◆ UpdateTrackSubscription()
